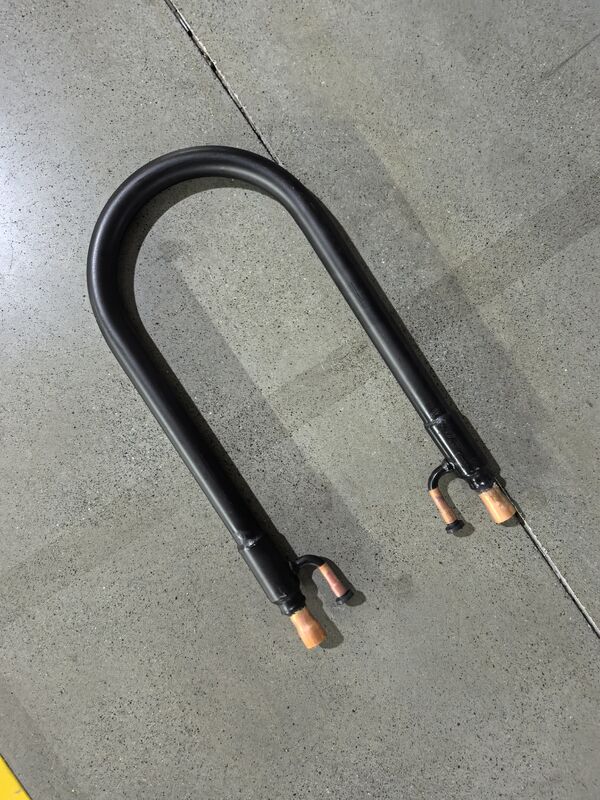

R22 Refrigerant Type Coaxial Heat Exchanger with Spiral Twisting Tube Construction and 140mm Width for Efficient Thermal Management

R22 Refrigerant Type Coaxial Heat Exchanger with Spiral Twisting Tube Construction and 140mm Width for Efficient Thermal Management

ブランド名:

Gimleo

証明:

CE,ROHS,REACH

Model Number:

COAXIAL-Z

連絡 ください
引金 を 求め て ください
R22 Refrigerant Type Coaxial Heat Exchanger with Spiral Twisting Tube Construction and 140mm Width for Efficient Thermal Management R22 Refrigerant Type Coaxial Heat Exchanger with Spiral Twisting Tube Construction and 140mm Width for Efficient Thermal Management
製品詳細
チューブ構造:
スパイラルツイスト
パイプ径:
38mm63mm
冷媒の種類:
R22/R134a/R407c/R410a
色:
スプレー 黒色防腐塗料
幅mm:
140
接続タイプ:
フランジュ
使用温度:
-20°Cから150°C
冷却剤の出口:
9.52mmまたはカスタマイズされた
支払いと送料の条件
Minimum Order Quantity
20
価格
50~500USD/SET
Packaging Details
PLYWOOD CASE
Delivery Time
35 WORKING DAYS
Payment Terms
T/T,100% PAID FOR ORDER CONFIRM
Supply Ability
500SETS PER DAY
関連製品
良い価格 Spiral Twisting Coaxial Heat Exchanger with 140mm Width and High Corrosion Resistance for Power Plants オンライン

Spiral Twisting Coaxial Heat Exchanger with 140mm Width and High Corrosion Resistance for Power Plants

最良 の 価格 を 入手 する
良い価格 Marine Heat Exchanger with Spiral Twisting Construction, Corrosion Resistant, and Customizable Refrigerant Outlet for Marine Engine Temperature Control オンライン

Marine Heat Exchanger with Spiral Twisting Construction, Corrosion Resistant, and Customizable Refrigerant Outlet for Marine Engine Temperature Control

最良 の 価格 を 入手 する
良い価格 140mm Width Coaxial Heat Exchanger with 38mm and 63mm Pipe Diameter and Durable Spray Black Antirust Paint Protection オンライン

140mm Width Coaxial Heat Exchanger with 38mm and 63mm Pipe Diameter and Durable Spray Black Antirust Paint Protection

最良 の 価格 を 入手 する
良い価格 R22 Refrigerant Type Coaxial Heat Exchanger with Spiral Twisting Tube Construction and 140mm Width for Efficient Thermal Management オンライン

R22 Refrigerant Type Coaxial Heat Exchanger with Spiral Twisting Tube Construction and 140mm Width for Efficient Thermal Management

最良 の 価格 を 入手 する
連絡 ください
今連絡してください
製品説明
R22 Refrigerant Type Hot Water Heat Exchanger
The coaxial heat exchanger is a highly efficient and reliable component designed to optimize thermal energy transfer in various industrial and commercial applications. With a compact width of just 140 mm, this heat exchanger offers a space-saving solution without compromising performance.
Key Features
  • Product Name: Coaxial Heat Exchanger
  • Tube Construction: Spiral Twisting
  • Working Temperature Range: -20℃ to 150℃
  • Construction: Spiral Twisting for enhanced efficiency
  • Color: Spray Black Antirust Paint for durability
  • Compatible Refrigerant Types: R22, R134a, R407c, R410a
  • High-quality Titanium Coaxial Condenser design
  • Manufactured by leading Condenser Coils Manufacturer
Technical Specifications
Parameter Specification
Pipe Diameter 38mm, 63mm
Power Range 0.5~100 KW
Refrigerant Outlet 9.52mm or Customized
Refrigerant Type R22 / R134a / R407c / R410a
Water Connection 3/4 Inch
Color Spray Black Antirust Paint
Width 140 mm
Origin China
Tube Construction Spiral Twisting
Corrosion Resistance High (depends on material)
Applications
The Gimleo COAXIAL-Z coaxial heat exchanger is designed for demanding industrial and marine applications. It excels in marine environments for shipboard refrigeration, engine cooling systems, and HVAC units on vessels. Additionally, it's widely used in industrial refrigeration systems, chemical processing plants, and HVAC setups where compact and efficient heat exchange is essential.
Customization Options
Gimleo offers comprehensive customization services for the COAXIAL-Z model. Customizable features include heat transfer areas ranging from 1 to 10 M², tube lengths between 3 to 20 meters, and various design options including double pipe and finned tube heat exchangers.
Support & Services
We provide comprehensive technical support including installation guidance, troubleshooting, and performance optimization. Our services include regular maintenance, inspection, cleaning, and repair services carried out by certified technicians using genuine replacement parts.
Packaging & Shipping
Each unit is securely wrapped with protective materials and placed in sturdy wooden crates or reinforced cardboard boxes. We offer multiple shipping options including air freight, sea freight, and land transportation, with tracking information provided for all shipments.
Frequently Asked Questions
Q: What is the brand and model number?
A: Branded Gimleo, model COAXIAL-Z
Q: What certifications does it have?
A: CE, ROHS, and REACH certified
Q: What are the ordering details?
A: Minimum order 20 sets, price range $50-500 per set, delivery in 35 working days
Q: What are the payment terms?
A: 100% T/T payment upon order confirmation
